medium voltage cables

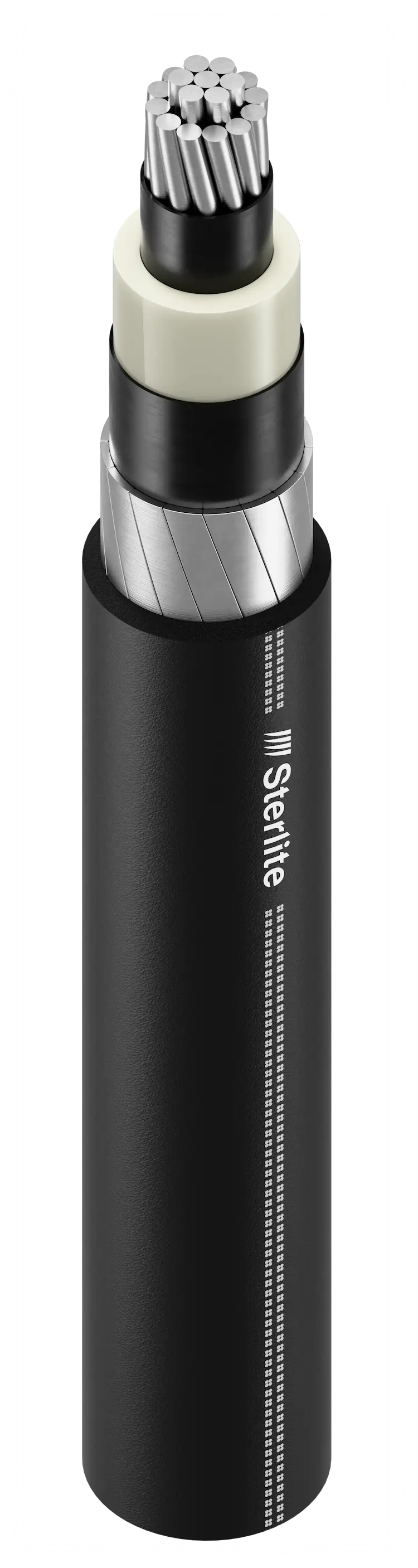

SINGLE CORE FLAT STRIP ARMOURED CABLE
Stranded circular compacted Aluminium/Copper conductor, semiconducting layer as conductor screen, XLPE insulated, semiconducting layer as non metallic insulation screen, Copper tape or wire as metallic insulation screen, armoured with round alumnium wire and PVC sheathed.
medium voltage cables
SINGLE CORE FLAT STRIP ARMOURED CABLE
Stranded circular compacted Aluminium/Copper conductor, semiconducting layer as conductor screen, XLPE insulated, semiconducting layer as non metallic insulation screen, Copper tape or wire as metallic insulation screen, armoured with round alumnium wire and PVC sheathed.
medium voltage cables
SINGLE CORE FLAT STRIP ARMOURED CABLE
Stranded circular compacted Aluminium/Copper conductor, semiconducting layer as conductor screen, XLPE insulated, semiconducting layer as non metallic insulation screen, Copper tape or wire as metallic insulation screen, armoured with round alumnium wire and PVC sheathed.
medium voltage cable
SINGLE CORE FLAT STRIP ARMOURED CABLE
Cable Construction
number of cores
1
voltage range
6-33 kV
nominal cross section sizes (mm2)
95-1000
Cable Construction
number of cores
1
voltage range
6-33 kV
nominal cross section sizes (mm2)
95-1000
Cable Construction
number of cores
1
voltage range
6-33 kV
nominal cross section sizes (mm2)
95-1000

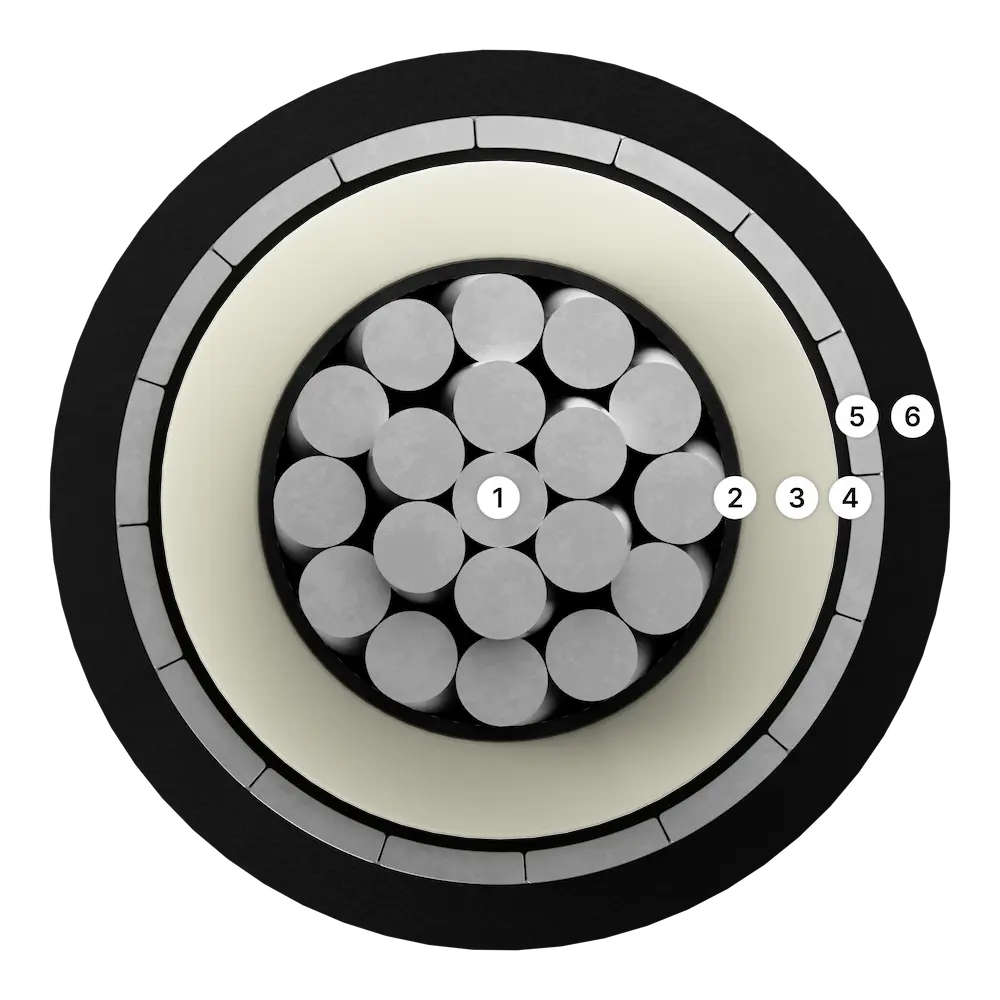

1
Conductor
Compacted Circular Stranded Copper or Aluminium Conductor
2
Conductor Screening
Extruded Semi-conductor
3
Insulation
Cross-Linked Polyethylene (XLPE)
4
Insulation Screening
Extruded Semi-conductor
5
Armouring
Aluminium Flat Strip Armour
6
Outer Sheath
Extruded Poly-Vinyl Chloride (PVC ST-2) Outer Jacket
1
Conductor
Compacted Circular Stranded Copper or Aluminium Conductor
2
Conductor Screening
Extruded Semi-conductor
3
Insulation
Cross-Linked Polyethylene (XLPE)
4
Insulation Screening
Extruded Semi-conductor
5
Armouring
Aluminium Flat Strip Armour
6
Outer Sheath
Extruded Poly-Vinyl Chloride (PVC ST-2) Outer Jacket
1
Conductor
Compacted Circular Stranded Copper or Aluminium Conductor
2
Conductor Screening
Extruded Semi-conductor
3
Insulation
Cross-Linked Polyethylene (XLPE)
4
Insulation Screening
Extruded Semi-conductor
5
Armouring
Aluminium Flat Strip Armour
6
Outer Sheath
Extruded Poly-Vinyl Chloride (PVC ST-2) Outer Jacket
Laying Conditions
Buried Direct in the Ground
Trefoil
flat spaced
Buried in Single-way Ducts
trefoil
flat touching
Ducts in Air
trefoil
flat touching
flat spaced
maximum conductor temperature
90⁰C
ambient air temperature (as per standard)
30⁰C or 40⁰C
ground temperature (as per standard)
20⁰C or 30⁰C
depth of laying (as per standard)
0.8 or 0.9 m
Thermal Resistivity of Soil
1.5 K·m/W
Thermal Resistivity of Earthen Ducts
1.2 K·m/W
Laying Conditions
Buried Direct in the Ground
Trefoil
flat spaced
Buried in Single-way Ducts
trefoil
flat touching
Ducts in Air
trefoil
flat touching
flat spaced
maximum conductor temperature
90⁰C
ambient air temperature (as per standard)
30⁰C or 40⁰C
ground temperature (as per standard)
20⁰C or 30⁰C
depth of laying (as per standard)
0.8 or 0.9 m
Thermal Resistivity of Soil
1.5 K·m/W
Thermal Resistivity of Earthen Ducts
1.2 K·m/W
Laying Conditions
Buried Direct in the Ground
Trefoil
flat spaced
Buried in Single-way Ducts
trefoil
flat touching
Ducts in Air
trefoil
flat touching
flat spaced
maximum conductor temperature
90⁰C
ambient air temperature (as per standard)
30⁰C or 40⁰C
ground temperature (as per standard)
20⁰C or 30⁰C
depth of laying (as per standard)
0.8 or 0.9 m
Thermal Resistivity of Soil
1.5 K·m/W
Thermal Resistivity of Earthen Ducts
1.2 K·m/W
Customization Requests
The following customizations can be provided to customers on request
Customization Requests
The following customizations can be provided to customers on request
Customization Requests
The following customizations can be provided to customers on request
Higher
Ampacity
Higher
Ampacity
Higher
Ampacity
Water Tight Construction
Water Tight Construction
Water Tight Construction
Higher Fault Current Levels
Higher Fault Current Levels
Higher Fault Current Levels
Anti-Termite Protection
Anti-Termite Protection
Anti-Termite Protection
get in touch
Ready to power your next project?
Access full specifications or get a tailored offer for your requirement.
get in touch
Ready to power your next project?
Access full specifications or get a tailored offer for your requirement.
get in touch
Ready to power your next project?
Access full specifications or get a tailored offer for your requirement.
Packing Information
Our packing standards follow the highest regard for sustainability
01 cable length
Available in standard 500m and 1000m drum lengths to suit diverse project needs
02 Drum length
Higher drum lengths can be provided in order to reduce the number of joints for a cable route.
03 drum material
Supplied in recyclable steel drums — stronger, safer, and eco-friendly, making them a sustainable choice over wooden drums.
04 drum covering
The cables on the steel drums shall be covered with superior quality Poly-Propylene (PP) sheath to avoid external exposure.
05 enhanced cable protection
Covered with high-quality PP sheath for enhanced resistance against external damage
06 water prevention
Heat Shrinkable end caps shall be provided on both ends of cable to prevent water ingress into the cable.
Packing Information
Our packing standards follow the highest regard for sustainability
01 cable length
Available in standard 500m and 1000m drum lengths to suit diverse project needs
02 Drum length
Higher drum lengths can be provided in order to reduce the number of joints for a cable route.
03 drum material
Supplied in recyclable steel drums — stronger, safer, and eco-friendly, making them a sustainable choice over wooden drums.
04 drum covering
The cables on the steel drums shall be covered with superior quality Poly-Propylene (PP) sheath to avoid external exposure.
05 enhanced cable protection
Covered with high-quality PP sheath for enhanced resistance against external damage
06 water prevention
Heat Shrinkable end caps shall be provided on both ends of cable to prevent water ingress into the cable.
Packing Information
Our packing standards follow the highest regard for sustainability
01 cable length
Available in standard 500m and 1000m drum lengths to suit diverse project needs
02 Drum length
Higher drum lengths can be provided in order to reduce the number of joints for a cable route.
03 drum material
Supplied in recyclable steel drums — stronger, safer, and eco-friendly, making them a sustainable choice over wooden drums.
04 drum covering
The cables on the steel drums shall be covered with superior quality Poly-Propylene (PP) sheath to avoid external exposure.
05 enhanced cable protection
Covered with high-quality PP sheath for enhanced resistance against external damage
06 water prevention
Heat Shrinkable end caps shall be provided on both ends of cable to prevent water ingress into the cable.
