medium voltage cables

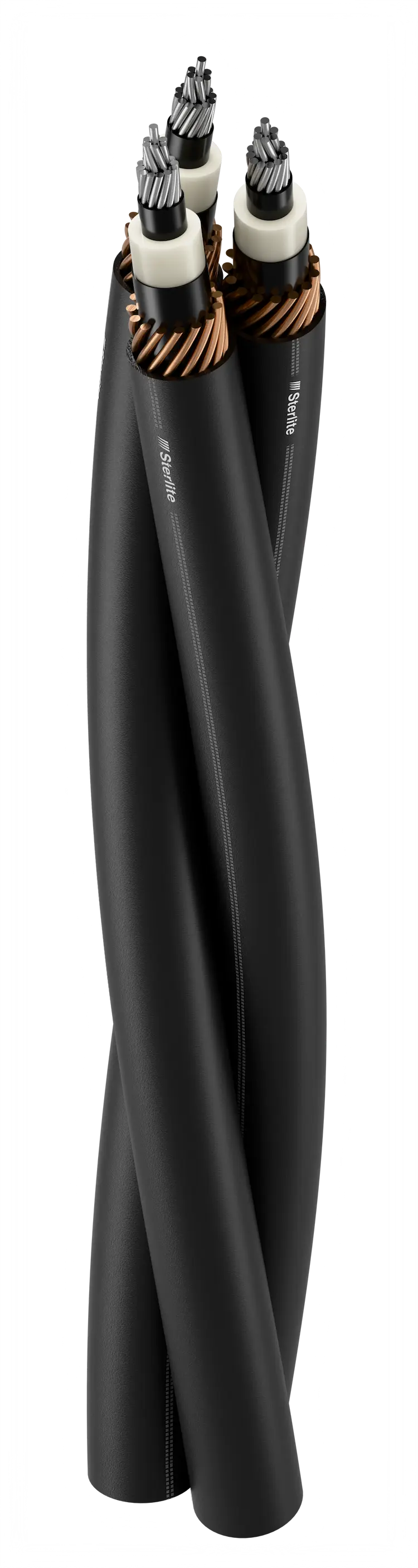

TRIPLEX HEAVY DUTY SCREENED WATER BLOCKING TAPED HDPE SHEATHED CABLE
A high-performance power cable with stranded copper or aluminium conductor, XLPE/TR-XLPE insulation, copper wire screen and PVC outer sheath ensuring durability, safety, and reliable power transmission across demanding applications.
medium voltage cables
TRIPLEX HEAVY DUTY SCREENED WATER BLOCKING TAPED HDPE SHEATHED CABLE
A high-performance power cable with stranded copper or aluminium conductor, XLPE/TR-XLPE insulation, copper wire screen and PVC outer sheath ensuring durability, safety, and reliable power transmission across demanding applications.
medium voltage cables
TRIPLEX HEAVY DUTY SCREENED WATER BLOCKING TAPED HDPE SHEATHED CABLE
A high-performance power cable with stranded copper or aluminium conductor, XLPE/TR-XLPE insulation, copper wire screen and PVC outer sheath ensuring durability, safety, and reliable power transmission across demanding applications.
medium voltage cable
TRIPLEX HEAVY DUTY SCREENED WATER BLOCKING TAPED HDPE SHEATHED CABLE
Cable Construction
number of cores
3
voltage range
6.6-33 kV
nominal cross section sizes (mm2)
95-400
Cable Construction
number of cores
3
voltage range
6.6-33 kV
nominal cross section sizes (mm2)
95-400
Cable Construction
number of cores
3
voltage range
6.6-33 kV
nominal cross section sizes (mm2)
95-400

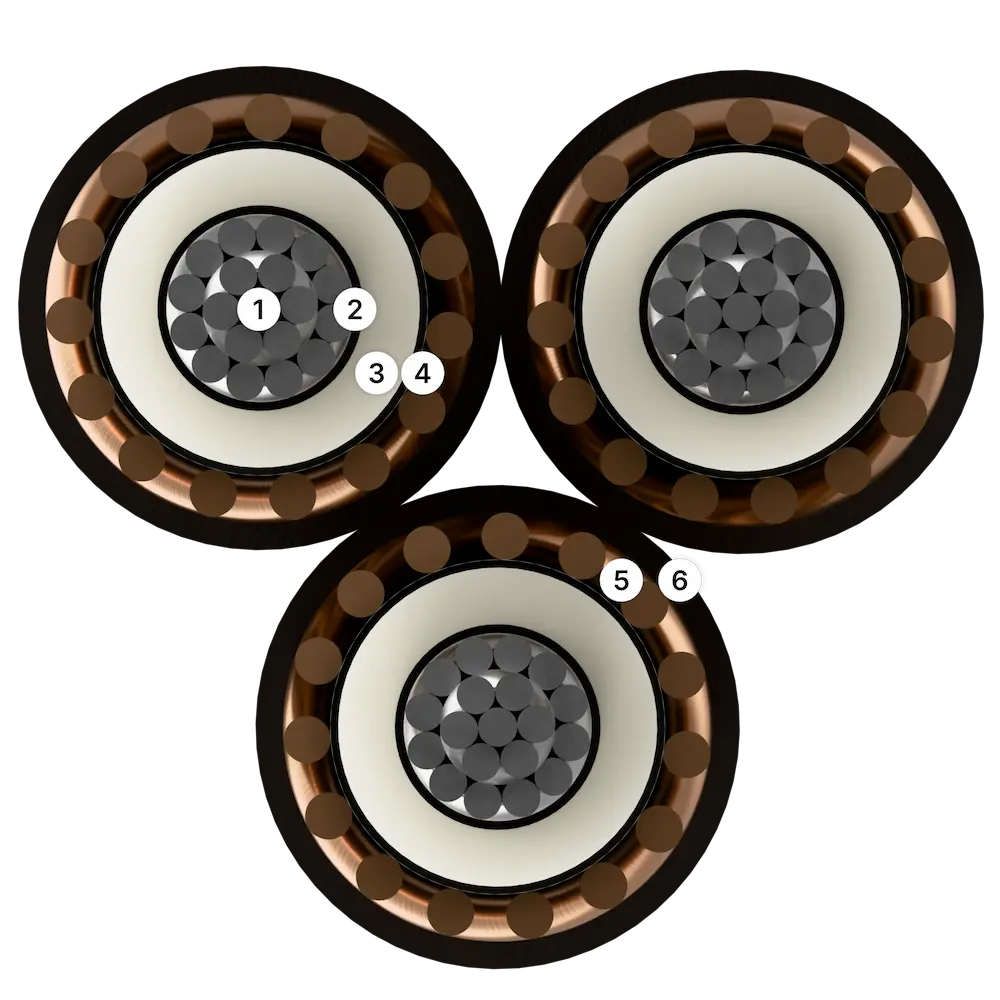

1
Conductor
Compacted Circular Stranded Copper or Aluminium Conductor
2
Conductor Screening
Extruded Semi-conductor
3
Insulation
Cross-Linked Polyethylene (XLPE/TR-XLPE)
4
Insulation Screening
Extruded Semi-conductor (Hand Strippable)
5
Metallic Screening
Copper Wires Screen
6
Outer Sheath
Extruded HDPE Outer Jacket
* PVC 5V-90 outer sheath or composite sheath of combination of inner layer of PVC 5V-90 and outer layer of HDPE can also be provided as per customer's requirement.
1
Conductor
Compacted Circular Stranded Copper or Aluminium Conductor
2
Conductor Screening
Extruded Semi-conductor
3
Insulation
Cross-Linked Polyethylene (XLPE/TR-XLPE)
4
Insulation Screening
Extruded Semi-conductor (Hand Strippable)
5
Metallic Screening
Copper Wires Screen
6
Outer Sheath
Extruded HDPE Outer Jacket
* PVC 5V-90 outer sheath or composite sheath of combination of inner layer of PVC 5V-90 and outer layer of HDPE can also be provided as per customer's requirement.
1
Conductor
Compacted Circular Stranded Copper or Aluminium Conductor
2
Conductor Screening
Extruded Semi-conductor
3
Insulation
Cross-Linked Polyethylene (XLPE/TR-XLPE)
4
Insulation Screening
Extruded Semi-conductor (Hand Strippable)
5
Metallic Screening
Copper Wires Screen
6
Outer Sheath
Extruded HDPE Outer Jacket
* PVC 5V-90 outer sheath or composite sheath of combination of inner layer of PVC 5V-90 and outer layer of HDPE can also be provided as per customer's requirement.
Laying Conditions
Buried Direct in the Ground
Buried in Single-way Ducts
Ducts
in Air
maximum conductor temperature
90⁰C
ambient air temperature (as per standard)
30⁰C or 40⁰C
ground temperature (as per standard)
20⁰C or 30⁰C
depth of laying (as per standard)
0.8 or 0.9 m
Thermal Resistivity of Soil
1.5 K·m/W
Thermal Resistivity of Earthen Ducts
1.2 K·m/W
Laying Conditions
Buried Direct in the Ground
Buried in Single-way Ducts
Ducts
in Air
maximum conductor temperature
90⁰C
ambient air temperature (as per standard)
30⁰C or 40⁰C
ground temperature (as per standard)
20⁰C or 30⁰C
depth of laying (as per standard)
0.8 or 0.9 m
Thermal Resistivity of Soil
1.5 K·m/W
Thermal Resistivity of Earthen Ducts
1.2 K·m/W
Laying Conditions
Buried Direct in the Ground
Buried in Single-way Ducts
Ducts
in Air
maximum conductor temperature
90⁰C
ambient air temperature (as per standard)
30⁰C or 40⁰C
ground temperature (as per standard)
20⁰C or 30⁰C
depth of laying (as per standard)
0.8 or 0.9 m
Thermal Resistivity of Soil
1.5 K·m/W
Thermal Resistivity of Earthen Ducts
1.2 K·m/W
Customization Requests
The following customizations can be provided to customers on request
Customization Requests
The following customizations can be provided to customers on request
Customization Requests
The following customizations can be provided to customers on request
Higher
Ampacity
Higher
Ampacity
Higher
Ampacity
Water Tight Construction
Water Tight Construction
Water Tight Construction
Higher Fault Current Levels
Higher Fault Current Levels
Higher Fault Current Levels
Armoured Construction
Armoured Construction
Armoured Construction
Anti-Termite Protection
Anti-Termite Protection
Anti-Termite Protection
get in touch
Ready to power your next project?
Access full specifications or get a tailored offer for your requirement.
get in touch
Ready to power your next project?
Access full specifications or get a tailored offer for your requirement.
get in touch
Ready to power your next project?
Access full specifications or get a tailored offer for your requirement.
Packing Information
Our packing standards follow the highest regard for sustainability
01 cable length
Available in standard 500m and 1000m drum lengths to suit diverse project needs
02 Drum length
Higher drum lengths can be provided in order to reduce the number of joints for a cable route.
03 drum material
Supplied in recyclable steel drums — stronger, safer, and eco-friendly, making them a sustainable choice over wooden drums.
04 drum covering
The cables on the steel drums shall be covered with superior quality Poly-Propylene (PP) sheath to avoid external exposure.
05 enhanced cable protection
Covered with high-quality PP sheath for enhanced resistance against external damage
06 water prevention
Heat Shrinkable end caps shall be provided on both ends of cable to prevent water ingress into the cable.
Packing Information
Our packing standards follow the highest regard for sustainability
01 cable length
Available in standard 500m and 1000m drum lengths to suit diverse project needs
02 Drum length
Higher drum lengths can be provided in order to reduce the number of joints for a cable route.
03 drum material
Supplied in recyclable steel drums — stronger, safer, and eco-friendly, making them a sustainable choice over wooden drums.
04 drum covering
The cables on the steel drums shall be covered with superior quality Poly-Propylene (PP) sheath to avoid external exposure.
05 enhanced cable protection
Covered with high-quality PP sheath for enhanced resistance against external damage
06 water prevention
Heat Shrinkable end caps shall be provided on both ends of cable to prevent water ingress into the cable.
Packing Information
Our packing standards follow the highest regard for sustainability
01 cable length
Available in standard 500m and 1000m drum lengths to suit diverse project needs
02 Drum length
Higher drum lengths can be provided in order to reduce the number of joints for a cable route.
03 drum material
Supplied in recyclable steel drums — stronger, safer, and eco-friendly, making them a sustainable choice over wooden drums.
04 drum covering
The cables on the steel drums shall be covered with superior quality Poly-Propylene (PP) sheath to avoid external exposure.
05 enhanced cable protection
Covered with high-quality PP sheath for enhanced resistance against external damage
06 water prevention
Heat Shrinkable end caps shall be provided on both ends of cable to prevent water ingress into the cable.
